March 27, 2025
Non Free Flow Auger Filler Disassembly
How to disassemble your non-free flow auger filler for cleaning and maintenance

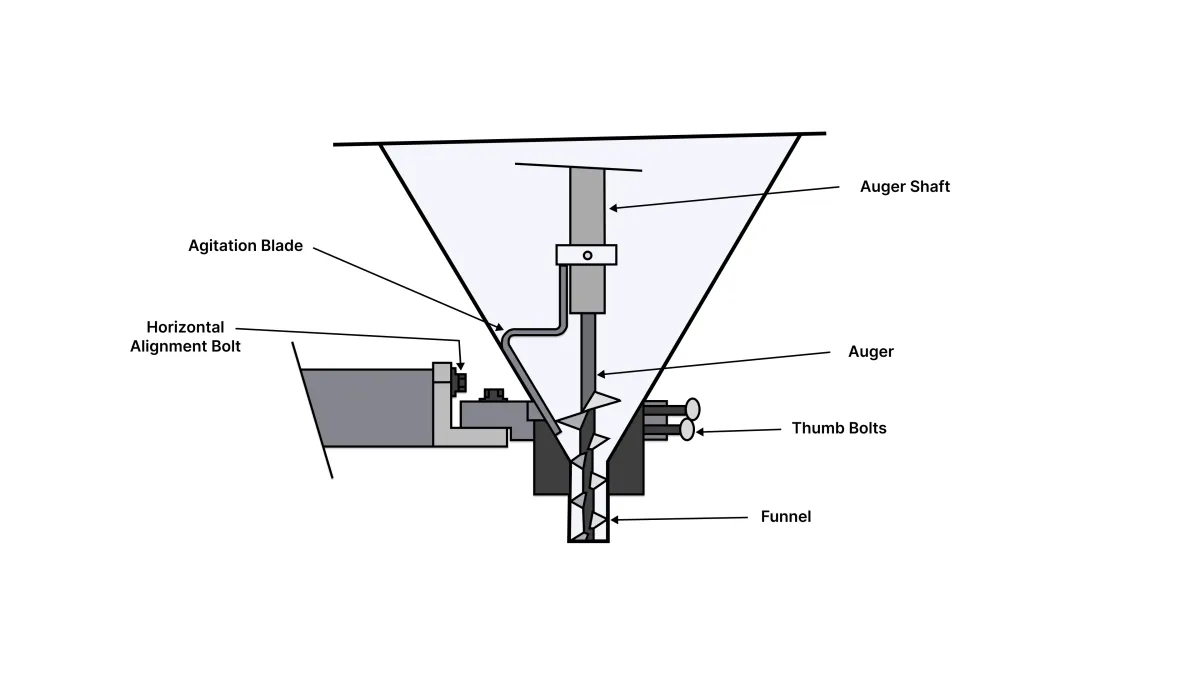

Below is a non-free-flow tooling diagram that shows all the parts we will go over during disassembly.
Step 1: Turn off the machine

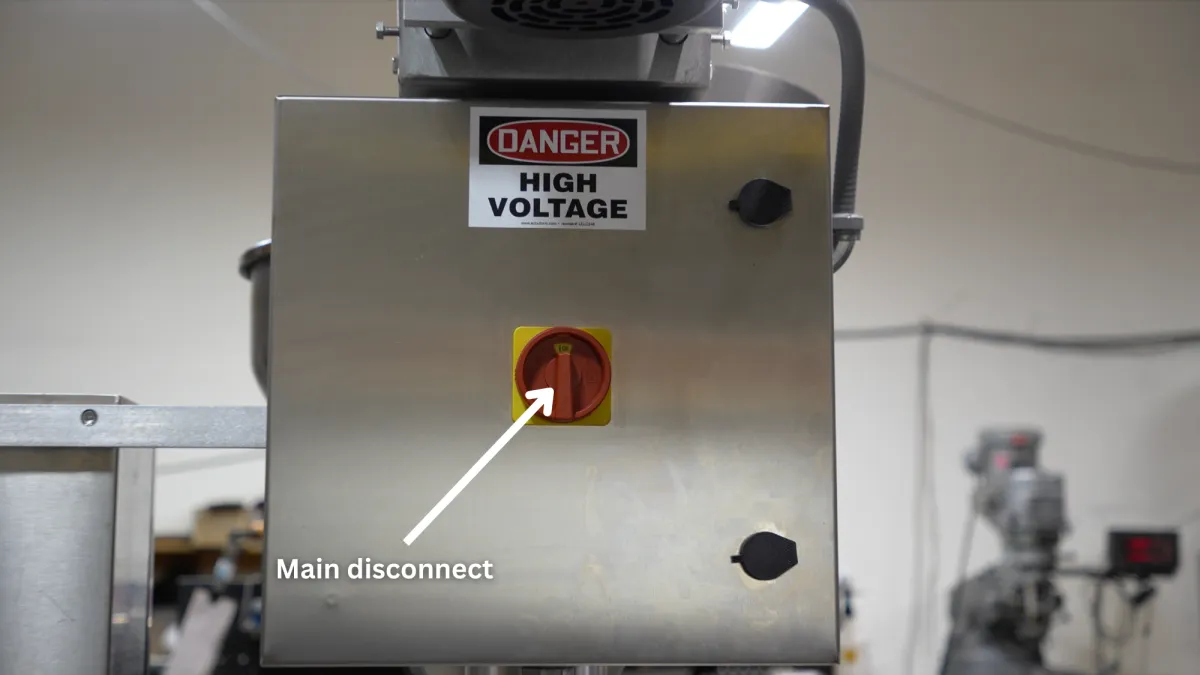

Turn off the main disconnect to the machine located on the back control box.
Step 2: Take off the funnel
There are 6 total thumb bolts on the coupling. The bottom 3 thumb bolts need to be loosened and then slide out the funnel.
Step 3: Remove the auger

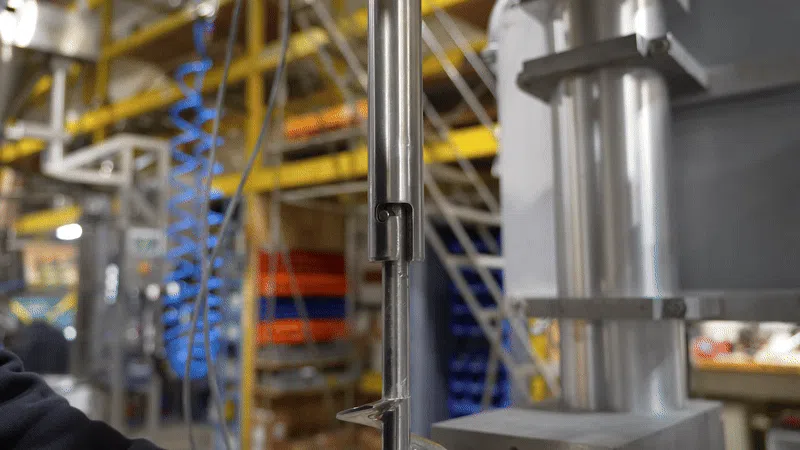

The auger is spring loaded so you need to push it up first into the spring, then rotate it counterclockwise, then down and out of the auger shaft. The spring loaded mechanism is shown below.
In the picture above the auger removal is shown with the hopper off for demonstration. You will do this with the hopper on.
Step 4: Remove the hopper
First remove the 4 quick release clamps at the top of the hopper.

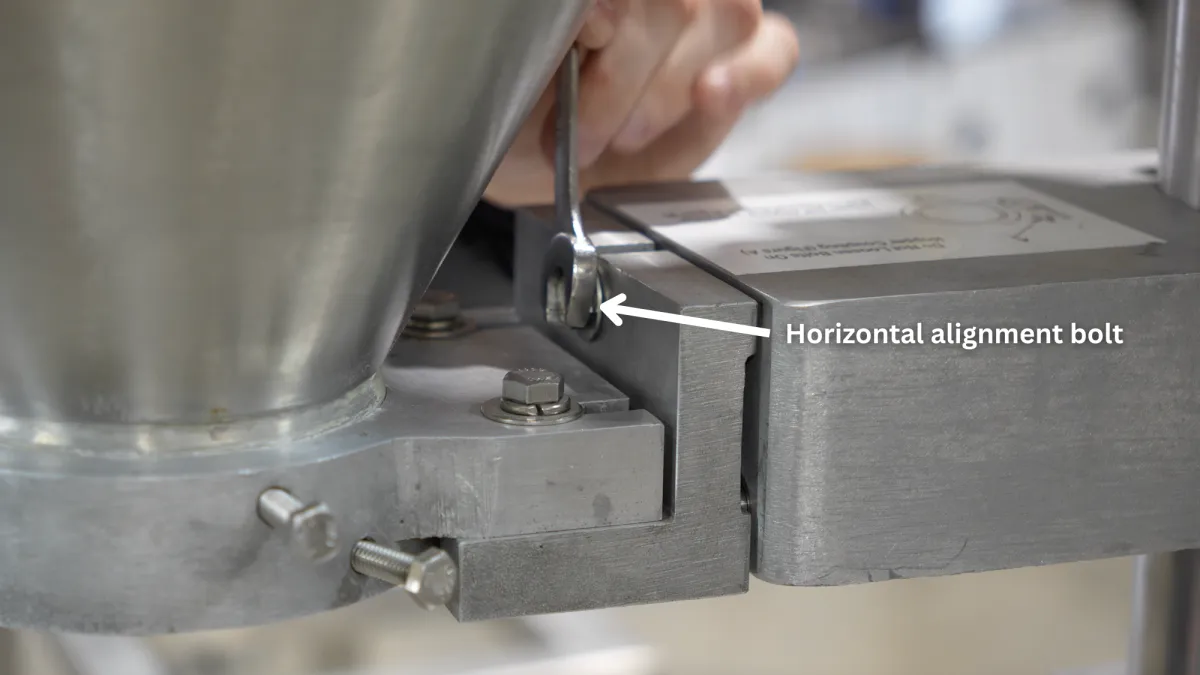

Remove the horizontal alignment bolt. Don't touch the two vertical alignment bolts because they are already set with proper alignment. Remove the hopper.
Step 5: Remove the auger shaft and agitation blade

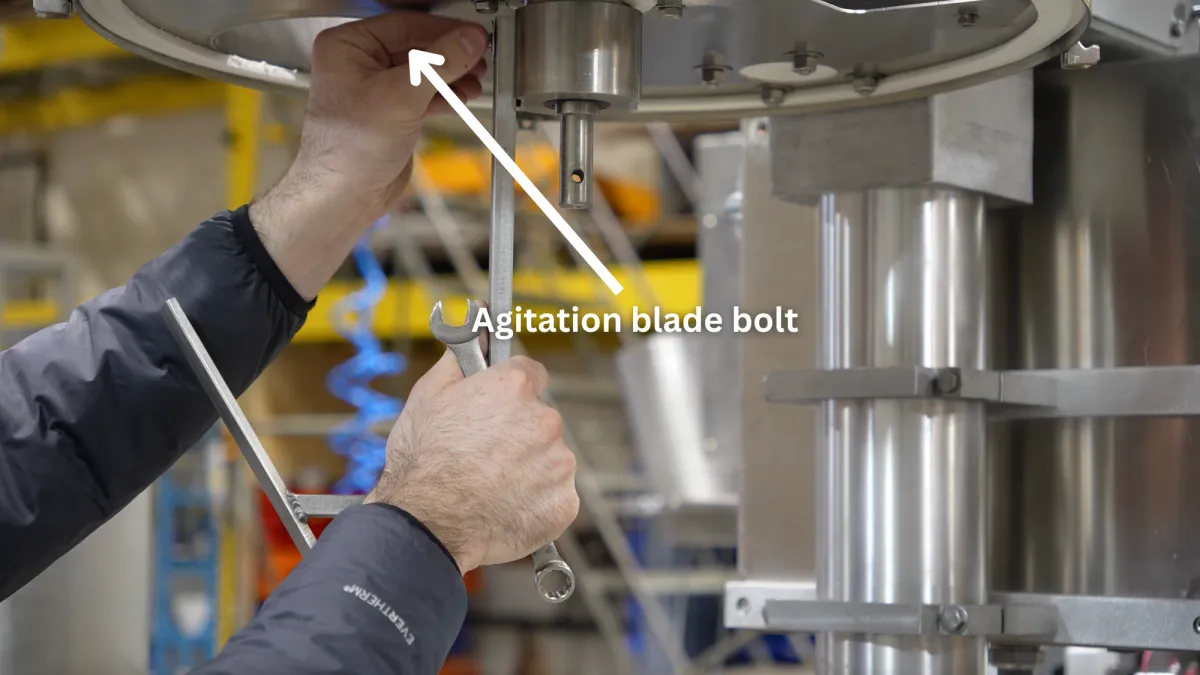

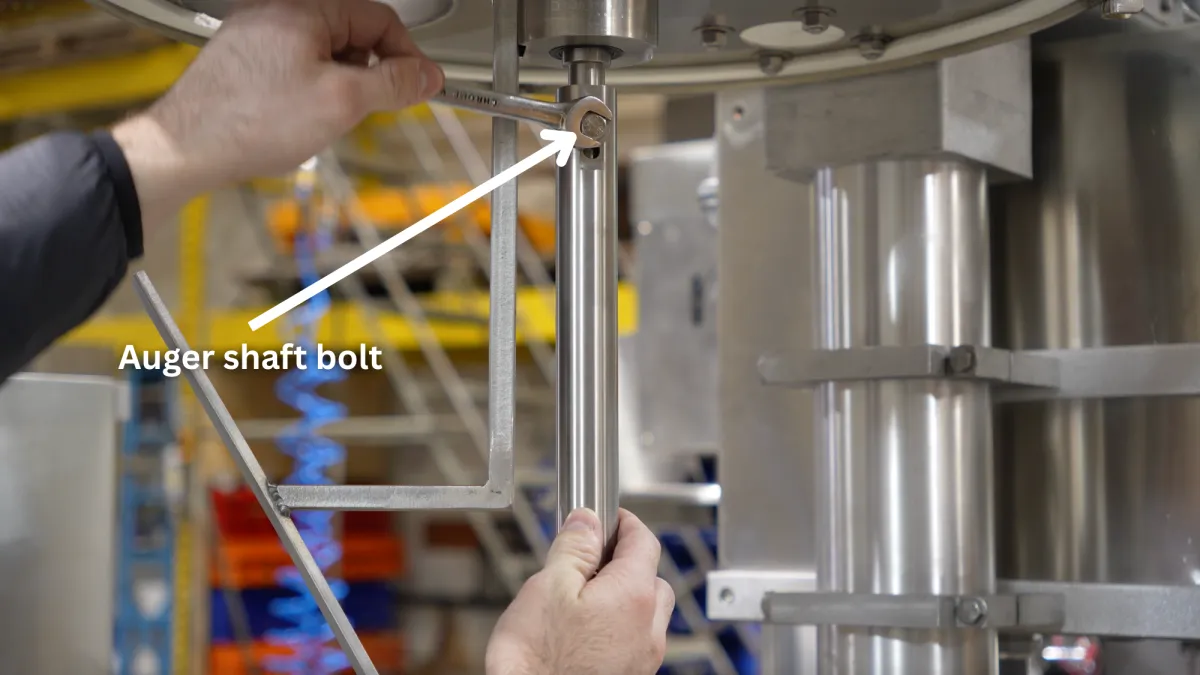

There is a bolt on both the auger shaft and agitation blade that needs to be removed to take off these two pieces of tooling.
Step 6: Clean everything
All the parts that we remove are stainless steel so wash accordingly. Usually just soap and water is necessary for cleaning.
Step 7: Reassemble the auger filler
Reattach the auger shaft and agitation blade.
Reattach the hopper, horizontal alignment bolt, and quick release clamps.
Insert the auger into the auger shaft by pushing it up turn it clockwise until it stops and it should lock into place.
Reattach the funnel until it fits snug into the coupling and then tighten the 3 bottom thumb bolts.
Step 8: The auger shaft and auger have to be set correctly before filling
Set the auger 1/16th of an inch above the funnel lip. This is done so that the auger does not wear out prematurely.
Loosen the auger shaft bolt by reaching inside of the hopper. Refer to step 5 if you are having trouble.

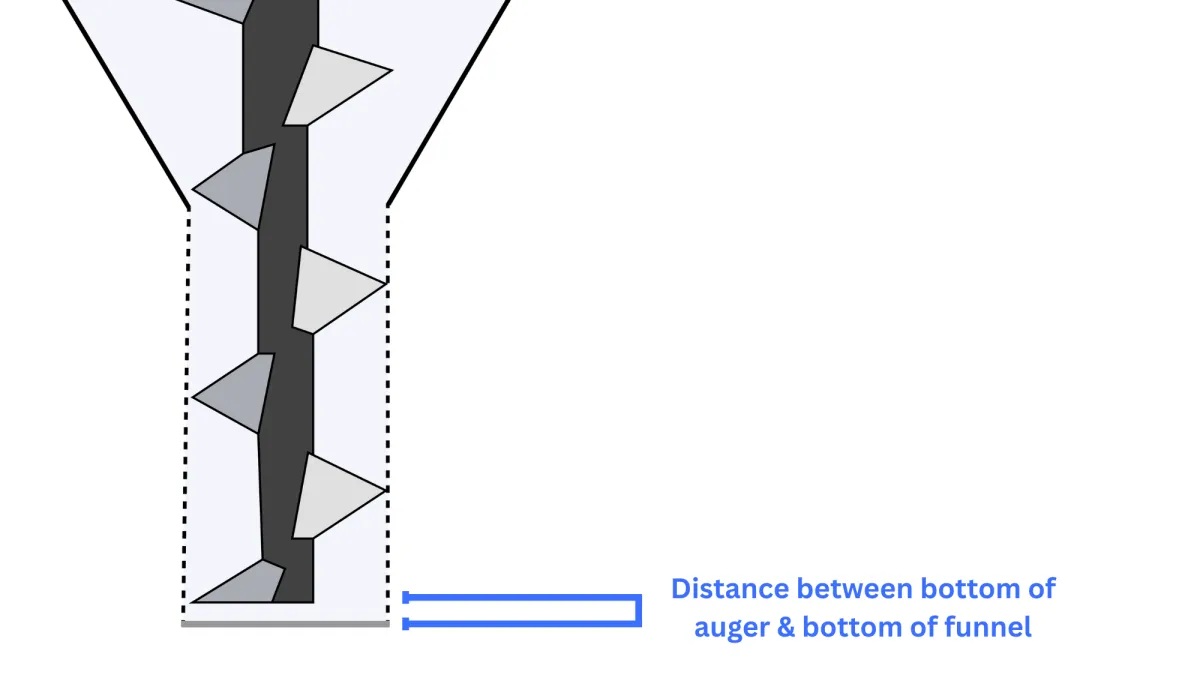

Raise the auger shaft until the bottom of the auger is 1/16th of an inch above the funnel lip as shown in the picture below.
Tighten the auger shaft bolt.
