Image 3K

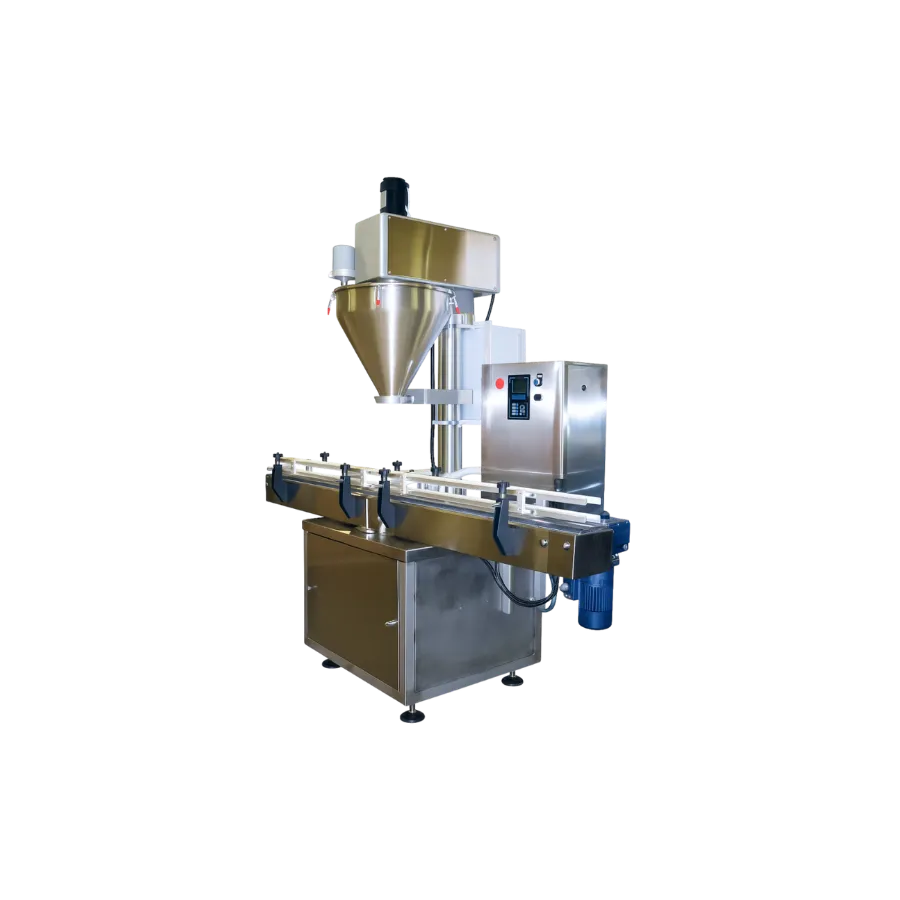

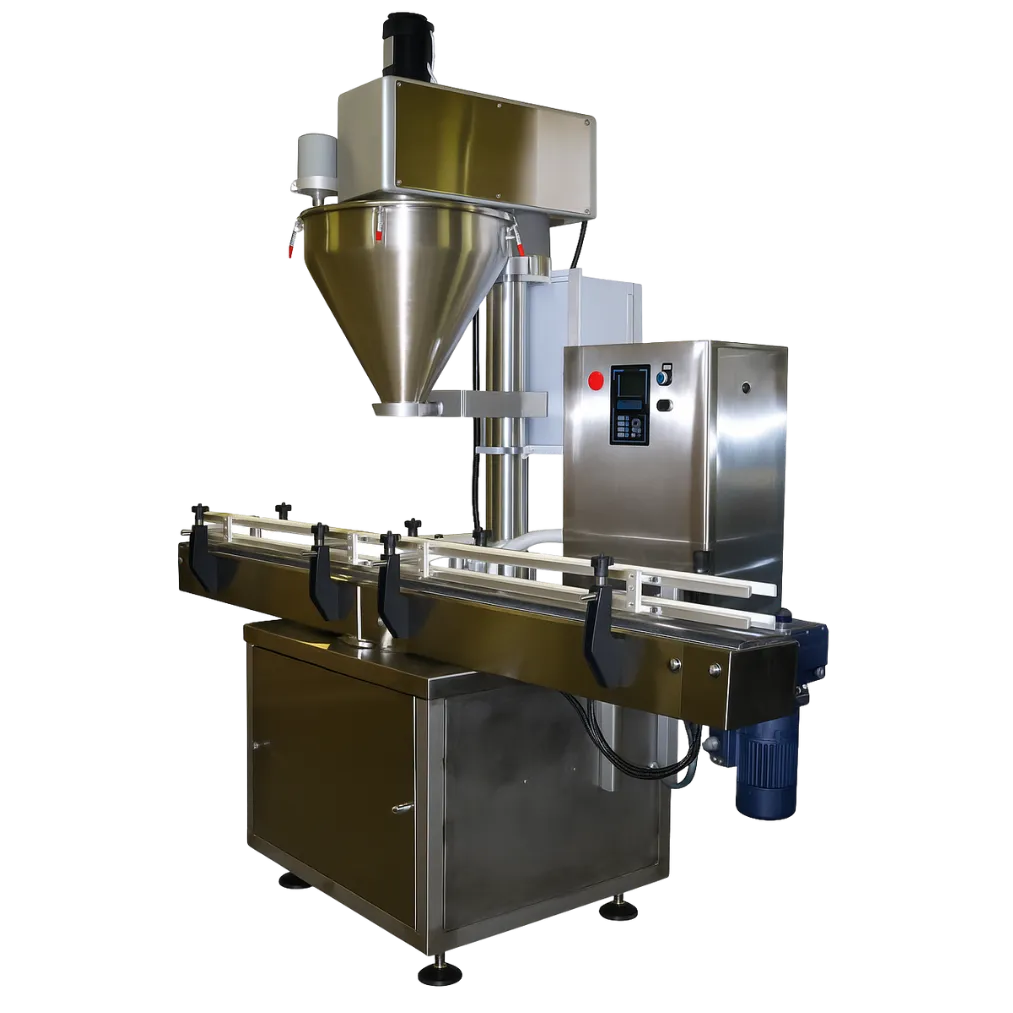

Auger Filler with Conveyor System

Image 3K Filler

Clutch Brake Motor

10-35 bottles/min

Description

Fills 1 gram → 50 lbs

The Image 3000 utilizes a stainless steel automated conveyor with indexing pins to move the container down, stop it under the fill station and fill, then index it out of the fill station. The filler can be mounted on a stainless steel frame or a full size enclosed Stainless Steel base. Multiple augers may be needed to run different fill weights.

Features

• Anodized Head Casting

• Stainless Steel Box Frame

• 16 Gallon Hopper with Quick Release Clamps

• Electric Clutch Brake

• Motor Protection• Agitation

• Stainless Steel Indexing ConveyorOptional:

• Servo Drive

• Allen Bradley PLC

• Pneumatic Lift

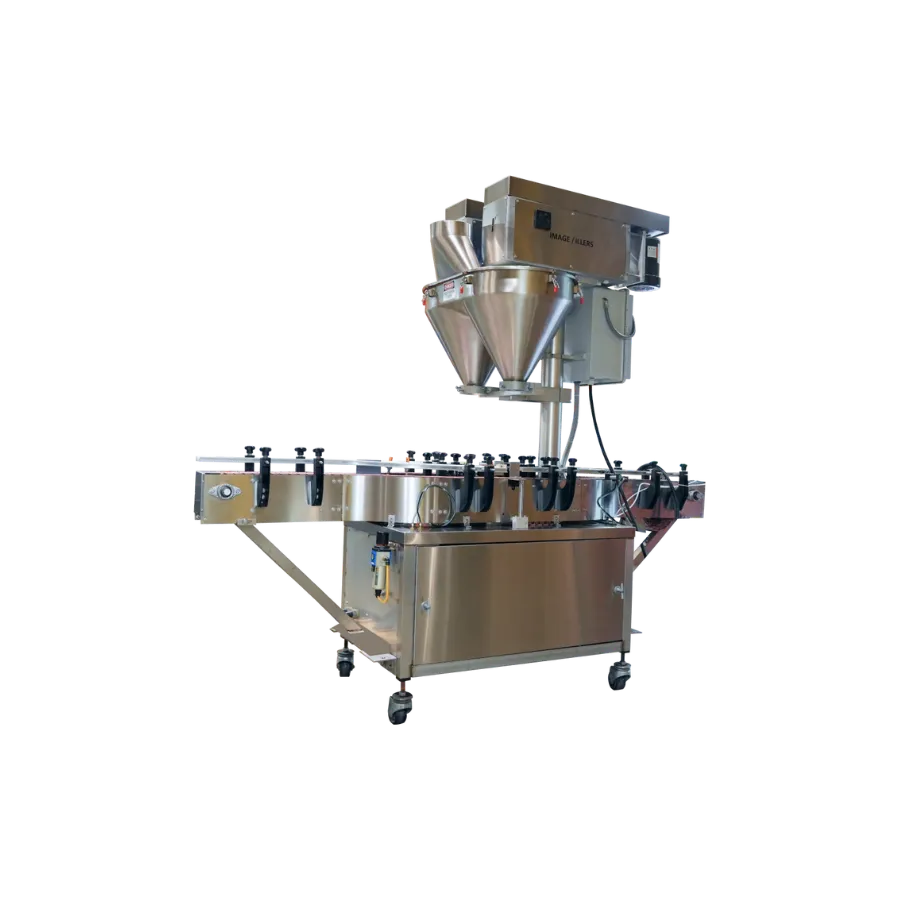

• Vibration36”, 48”, and 60” diameter unscrambling and accumulation tables (pictured above with two 36” tables)

Conveyor Options

The Image 3K is run with a continuous conveyor but can be switched out with an intermittent conveyor for running bottles or containers that tend to “tip” or are “top heavy”. The intermittent conveyor will stop the chain at each fill.

Image 3500 Filler

Servo Drive Motor

10-35 bottles/min

Description

Fills 1 gram → 50 lbs

The Image 3500 utilizes a stainless steel automated conveyor with indexing pins to move the container down, stop it under the fill station and fill, then index it out of the fill station. The filler can be mounted on a stainless steel frame or a full size enclosed Stainless Steel base. Multiple augers may be needed to run different fill weights.A Servo motor and PLC are utilized for higher precision and keeping product fills in memory.

Features

• Anodized Head Casting

• Stainless Steel Box Frame

• 16 Gallon Hopper with Quick Release Clamps

• Electric Clutch Brake

• Motor Protection

• Agitation

• Stainless Steel Indexing Conveyor

• Servo Drive

• Allen Bradley PLC

Optional:

• Pneumatic Lift

• Vibration36”, 48”, and 60” diameter unscrambling and accumulation tablesStainless steel enclosed base (as in picture above).

Conveyor Options

Which Filler is right for you?

Explore all machines

Clutch Brake

Image 3K

Clutch brake motor.

Pros

• Lower cost

• Time-tested

Small PLC system

Pros

• Lower cost

• Simple controls

Servo Drive

Image 3500

Servo drive motor.

Pros

• More accurate

• More reliable / longer lasting

Advanced PLC system

[ Allen Bradley PLC or Beckhoff PLC system ]

Pros

• More controls

• More memory

• More features

• Larger screen

Image 2K

Image 2500

Clutch brake

motor

Servo drive

motor

Pros

• Lower cost

• Time-tested

Pros

• More accurate

• More reliable / longer lasting

Small PLC

system

Advanced PLC system

[ Allen Bradley PLC or Beckhoff PLC system ]

Pros

• Lower cost

• Simple controls

Pros

• More controls

• More memory

• More features

• Larger screen

Ensure proper setup to experience increased accuracy:

• Keep the proper amount of product in the hopper

•use an agitation blade

• Spinner plate has to be at a 45° angle to the bottom of the funnel (free flow auger)

• Use correct tooling based on free flow & non-free flow machines

• Auger has to be in the correct position in the funnel

Image 3K Dimensions
